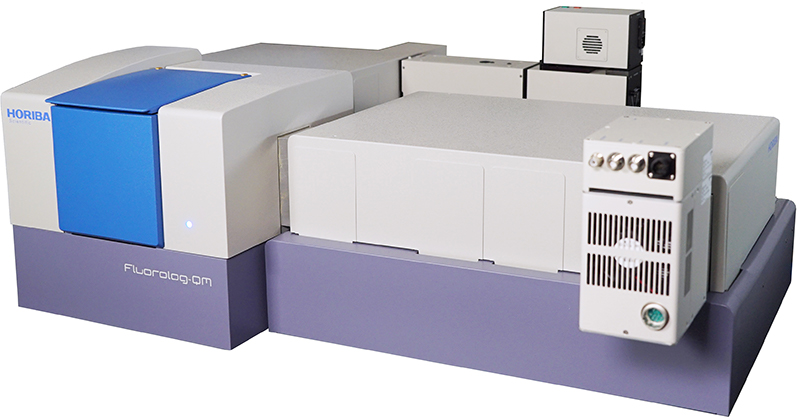

The Fluorolog-QM is the fourth generation of the Fluorolog, all reflective, modular research spectrofluorometer. The Fluorolog-QM is a lens free, all reflective spectrofluorometer covering all wavelengths from the deep UV (180 nm) to the IR (5500 nm). The Fluorolog-QM has a guaranteed sensitivity of 32,000 : 1 signal-to-noise ratio for the Raman band of water using the FSD (Square Root) method. It also has focal length of 350 mm for single monochromators, and 700 mm for double monochromators. The instrument is controlled with HORIBA’s newest fluorescence software, FelixFL, for all acquisition and analysis of spectral and time-resolved data.
The Fluorolog-QM can be configured to suit a broad range of luminescence research applications, ranging from a simple steady state configuration with a single light source and single cooled PMT housing, to a versatile configuration with four different light source options and six different detectors, all connected to the same instrument and all controlled automatically with FelixFL software.
