The “Gandalf” soil sampling project at a former industrial site in Copenhagen, Denmark: evaluating soil classification reliability

Bo Svensmark,a,* Peter Mortensen,b Nemanja Milosevicc and Jan H. Christensend

aAssociate Professor Emeritus, Department of Plant and Environmental Sciences, University of Copenhagen, Thorvaldsensvej 40, 1871, Frederiksberg C, Denmark
bManager, Research and Development at Eurofins Environment Denmark, Ladelundvej 85, DK-6600 Denmark
cSpecialist, MOE A/S engineering consultancy, Buddingevej 272, 2680, Søborg, Denmark
dProfessor, Department of Plant and Environmental Sciences, University of Copenhagen, Thorvaldsensvej 40, 1871, Frederiksberg C, Denmark

DOI: https://doi.org/10.1255/sew.2021.a29
© 2021 The Author
Published under a Creative Commons BY-NC-ND licence

Handling and transport of contaminated soil from industrial sites in Denmark requires classification based on concentrations of selected metals and organic contaminants. Reliable soil classification is needed for defensible remedial decision-making. Today’s sampling process in Denmark is based on grab sampling of prescribed standard volumes of soil; 30 tons is typically used as the basic sampling Decision Unit. Soil classification follows a number of varying systems, but classification into five classes (class 0 to class 4) based on analytical results from sub-samples of 50 g is the most common. In this study, we investigate the sampling uncertainty obtained by sampling of > 1800 samples at a former industrial site in Copenhagen, Denmark. The aim of the study was to conduct a critical assessment of the current sampling strategy by determination of soil classification errors obtained for duplicate primary samples and for secondary samples collected from the same truck-load of soil but with different distances from the original primary sample. It is also discussed which contaminants are the major parameters responsible for final soil classification designations.

Introduction

Our results demonstrate that across the site, the general sampling uncertainty over the many different contaminants included was at least 60–70 %. More interesting, 53 % of the replicates within the same primary sampling Decision Unit (DU) were classified differently from one another. Soil classification errors increase as a function of distance between samples up to a distance of 2 m where the classification error stabilises close to 60 % (some samples were misclassified with up to four class designations). Metals had the highest difference percentages with respect to alternative soil classifications, whereas lower percentages were obtained for Polycyclic Aromatic Hydrocarbons (PAHs), hydrocarbons and especially BTEX (benzene, toluene ethylbenzene and xylenes), reflecting low concentrations (often < detection limit, DL) which results in a massive class 0 classification bin (“clean soil”).

When following currently prescribed sampling strategies, this investigation on a scale of an entire industrial parcel demonstrates that primary and secondary sampling errors are the main factors affecting soil classification. At least 50 % of all samples are misclassified with potential significant negative consequences for ecosystems, public health and project economy. Thus, the Theory of Sampling (TOS) must be called in as a tool for improving the quality of data to be used for decision-making.

Background

Worldwide, former industrial sites are transformed into housing and office areas mainly due to densification of city areas. Because of former industrial production, storage of chemicals, raw materials (including soil from other sites), waste and petroleum fuels in underground and above-ground tanks and atmospheric deposition of airborne contaminants from the surrounding city areas, site soils often display complex contamination patterns. These contaminants include heavy metals, hydrocarbons, pesticides, chlorinated and bromated biphenyls etc.

Approximately 14,000 sites in Denmark, urbanised or industrialised before 1983, are expected to be contaminated due to former industrial use.1 After 1983, the first legislation dealing with contaminated sites was enacted (The Chemical Waste Deposit Act, 1983). Nowadays, in the absence of a dedicated EU directive on soil,2 chemical impact assessment at these former industrial sites together with excavation, transportation and reuse of soils are regulated by a set of national rules3–5 alongside a number of regional interpretations and recommendations.

Soil classification

For new construction projects, current Danish regulations demand that soil planned for excavation must be classified according to the level of contamination of selected contaminants before excavation and transport. One sample (grab sampling) shall be extracted for every DU, which is 30 tons of soil, corresponding to one truck-load.

The most frequently used regional recommendation in the City of Copenhagen is “Jordplan Zealand”.6 According to this, soils are classified into five classes according to the contamination levels of metals, BTEX, hydrocarbons and PAHs from class 0 for clean soil to class 4 for heavily contaminated soil according to the concentrations,6 see Table 1. The samples are classified according to the highest class for the individual compounds/parameters. The classification of excavated soils regulates their reuse. Class 0 can thus be reused for any purpose, whereas class 4 must be cleaned before reuse or deposited on landfill. Typically, the aim of soil classification on construction sites is either to delineate clean soil if the site does not have a record of industrial land use or to delineate heavily contaminated soil in former industrial sites.

Table 1. Threshold limits for contaminants in mg kg–1 dw (dry weight).5

Compound

Class

0

1

2

3

4

Cadmium

Cd

0.5

0.5

1

5

> 5

Chromium

Cr

50

500

500

750

> 750

Copper

Cu

30

500

500

750

> 750

Nickel

Ni

15

30

40

100

> 100

Lead

Pb

40

40

120

400

> 400

Tin

Sn

20

20

50

200

> 200

Zinc

Zn

100

500

500

1.5

> 1500

Benzene

Benzene

0.1

0.1

1.5

2.5

> 2.5

BTEX

BTEX

0.6

0.6

10

15

> 15

Light oil

C10–C20

55

55

83

110

> 110

Light oil

C10–C15

40

40

60

80

> 80

Light oil

C15–C20

55

55

83

110

> 110

Heavy oil

C20–C35

100

100

200

300

> 300

Volatiles

C6–C10

25

25

35

50

> 50

Oil total

C6–C35

100

100

200

300

> 300

Benz(a)pyrene

BaPyr

0.1

0.3

1

5

> 5

Dibenz(a,h)anthracene

DBahAnt

0.1

0.3

1

5

> 5

PAH

PAH

1

4

15

75

> 75

Study objective

The aim for this study is to critically assess the sampling strategy used for classification of contaminated, urban filled-in soil in Denmark using grab sampling of one sample per 30 tons of soil. As urban filled-in soil is a heterogeneous material, an improper sampling strategy would lead to biased results due to large uncertainties derived from non-representative sampling. Subsequently, high uncertainties will lead to incorrect contaminant classification. This study includes characterisation and evaluation of the current sampling protocol.

Study design

This study was performed on soil samples from an industrial site in Copenhagen. As part of an innovation project funded by Innovation Fund Denmark (GANDALF: Untargeted Fingerprinting Analysis and GIS Visualization of Contaminants - A New Paradigm for Chemical Impact Assessment in Urban Development), 1848 samples were extracted from a site in Copenhagen. The samples collected for soil classification are named “standard samples” in this paper. For the Gandalf project, this situation was ideal because a lot of samples and results for the contaminants listed in Table 1 were made available without extra cost. Standard samples were collected in 7 × 7 m grids, while additional samples were collected to investigate the distributional heterogeneity of the soil with a spatial resolution finer than 7 m. These extra samples, named “Gandalf samples”, were collected at 1 m, 2 m and 3 m distances from the standard samples. This paper describes the site, the sampling, the results and what we have learned regarding the sampling part of the project and the consequences for soil classification in general.

Methods and materials

Site description

The sampling site is a post-industrial location in Copenhagen, covering an area of 11,369 m2. A glue factory was located on the site a century ago, and 30 years later a paint and lacquer factory took over the site. At the end of the last century the property was used for warehousing, stock rental and container rental. Furthermore, tanks and drums containing chemicals and waste were stored on the site. The historical map is shown in Figure 1.

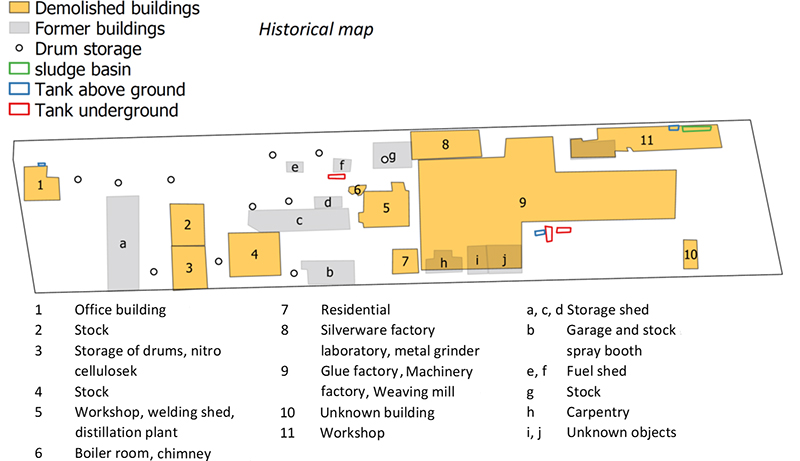

Figure 1. The site based on the historical report.7

Standard samples

Standard samples were collected as part of mandated soil classification before excavation of the site. Sampling was performed by the consulting engineering company MOE (https://www.moe.global/). The sampling of standard samples was planned according to legislation and standard protocols for sampling of contaminated sites, which stipulates grab sampling of one sample per 30 tons of soil.

As part of the classification, the site was divided into 216 squares of 7 × 7 m (49 m2) adjusted to fit the shape of the area and the footprint of the new building to be erected (see Figures 1 and 2a). In the 158 squares covering the location of the new buildings (B-sampling lots), nine standard samples were generally collected with 33 cm depth intervals to a depth of 3.00 m (0.00–0.33 m, 0.34–0.66 m, 0.67–1.00 m, 1.01–1.33 m, 1.34–1.66 m, 1.67–2.00 m, 2.01–2.33 m, 2.34–2.66 m and 2.67–3.00 m).

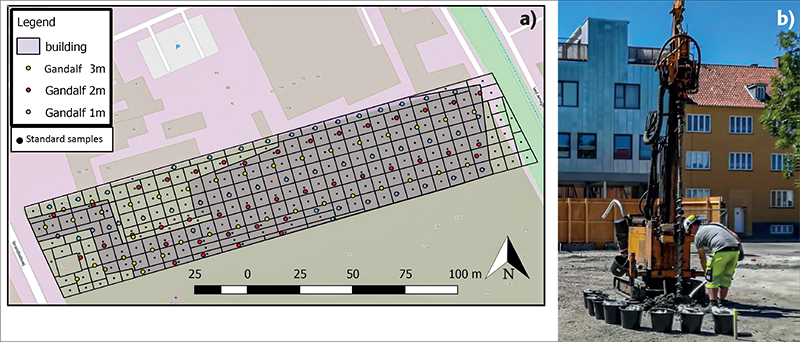

Figure 2. a. Site map with all sample positions. Inside the perimeter of the new building (shaded) for each position standard samples were collected at nine depths, while only two depth samples were collected from outside positions. The larger yellow, red and blue circles denote the location of the additional Gandalf samples collected at 1 m, 2 m and 3 m distances from the standard samples. b. Sampling of primary samples (picture is provided by MOE engineering consultancy). Each bucket contains a one-increment primary sample from nine different depths. Samples were scraped off the drill and deposited into plastic bags inside buckets to avoid cross-contamination.

In the 58 squares located outside the footprint of the new buildings (M-sampling lots), two depth samples (0.00–0.33 m and 0.67–1.00 m) were collected, Figure 2a. There were some exceptions to this due to project adjustments, i.e. some samples were not collected or not analysed, and 16 M-sampling lots were sampled at all depths down to 3 m, see Table 2 for a complete overview of the number and types samples collected. Figure 2b shows the sampling process.

Table 2. Number of samples as function of depth, designated by the relevant interval centre, e.g. 0.17 m is the centre of 0.00–0.33 m. “B” indicate samples collected inside the new building perimeter, while “M” indicate samples collected outside.

Depth (m)

Standard B

Gandalf B

Standard M

Gandalf M

Standard B + M

Gandalf B + M

Gandalf 1 m

Gandalf 2 m

Gandalf 3 m

0.17

158

88

58

22

216

110

34

39

37

0.5

141

1

16

5

157

6

0

0

6

0.83

141

84

34

21

175

105

31

37

37

1.17

141

0

16

5

157

5

0

0

5

1.5

141

0

16

5

157

5

0

0

5

1.83

141

0

16

5

157

5

0

0

5

2.17

141

0

16

5

157

5

0

0

5

2.5

140

1

16

5

156

6

0

1

5

2.83

140

53

16

4

156

57

17

20

20

Gandalf samples

Gandalf samples were used to estimate the distributional heterogeneity down to 1 m, and to serve as duplicates of the primary samples, as all Gandalf samples were collected inside the 49 m2 DU squares where a standard sample also was taken.

The position of the Gandalf samples is at a distance of 1 m, 2 m or 3 m from the standard sample position in four directions along, and perpendicular to, the main grid orientation. With a distance of 1 m, 2 m and 3 m from one standard sample position, the distance to the neighbouring standard sample position will be 6 m, 5 m and 4 m, i.e. this design gives samples in all distances of 1 m, 2 m, 3 m, 4 m, 5 m and 6 m from a standard sample position.

To reduce sampling and analysis costs, Gandalf samples were collected only for two of every three standard sample positions (110 of 158 positions), and at two or three depths only, see Table 2. In contrast, standard samples were collected at three or nine depths, respectively. Figure 3 shows the position of all Gandalf samples relative to the standard sample grid.

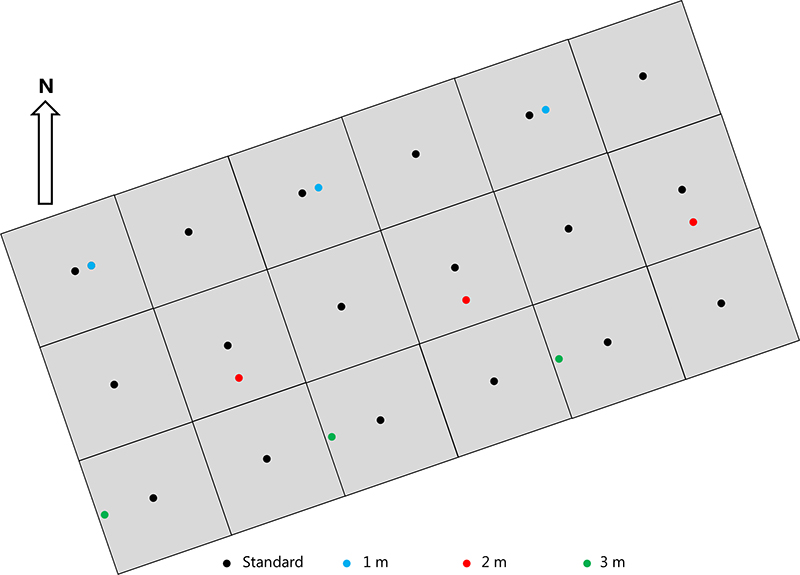

Figure 3. Gandalf sample positions relative to standard samples, shown for 1 m sample in an easterly direction (right side of the standard samples), 2 m samples in a southerly direction (below standard samples) and 3 m samples in a westerly direction (left of standard samples). The exact position of all Gandalf samples can be seen in Figure 2.

As shown in Figures 2 and 3, the Gandalf samples were collected in the same direction for a standard sampling transect in order to simplify the job for the sampling team. The positions for the Gandalf samples were not measured by GPS but calculated relative to the closest standard sample position.

Sampling

Sampling was performed by a rotary auger (diameter = 10 cm), Figure 2b. The outermost 1–2 cm of the drilled soil column was removed by knife before the rest of each 33 cm length primary samples were transferred to a bucket and mixed. Each primary sample corresponds to a lot of approximately 30 tons (7 × 7 × 0.33 m × 1.85 tons m–3) and had a weight of approximately 3.7 kg, which corresponds to a primary sampling rate ~1 : 8000 (m/m).

After manual mixing with a spoon, or by hand and removal of extraneous rocks and plastic materials, secondary samples of approximately 50 g were constructed by randomly spoon-collecting a minimum of 10 increments from each primary sample. Secondary samples were transferred to glass containers with a septum (blue cap) and to a Rilsan® bag (nylon) for analysis, and were stored in cooling containers after sampling and during transportation. The secondary sampling corresponds to a ~75 mass reduction rate. The only difference from the official standard sampling method is the use of 10 increments in the Gandalf project instead of one.

Thus overall, extracting 50 g analytical samples from DUs of 30 tons corresponds to a massive 1 : 600,000 sampling rate. From current official guidelines it is assumed that such a sampling rate will result in representative samples for each DU; this assumption is evaluated below.

Analysis

The glass containers were used for transport of samples for analysis for BTEX, hydrocarbons and PAHs, whereas the soil in Rilsan bags was used for dry weight determination and metal analysis. Only one replicate from the secondary sampling was analysed for each contamination type. BTEX and hydrocarbons were analysed according to RefLab method 1:2010,8 PAH’s according to RefLab 4:2008,9 metals according to DS 259:2003 (extraction)/SM3120 (analysis)10,11 and dry weight according to DS 204:1980.12 All methods are accredited according to accreditation 168 (DANAK). Samples were kept at 4–5 °C until analysis. All analysis were performed by Eurofins Environment Denmark.

Results and discussion

Levels and distribution of contaminants

An overview of measured parameters is listed in Table 3 which shows information on the number and percentage of analysed samples for each parameter, percentage of samples above detection limits (DL) and min, max, mean and median concentrations.

Table 3. Compounds/parameters analysed. Concentrations are in mg kg–1 dw (dry weight). Statistics have only been calculated for concentrations > DL.



Dry matter

Pb

Cd

Cr

Cu

Ni

Zn

Results

1792

1792

1792

1792

1792

1792

1792

Not measured

0

0

0

0

0

0

0

Detected

1792

1792

1729

1791

1792

1792

1792

% Detected

100

100

96

100

100

100

100

Min

52

1.8

0.0

2.9

2.3

2.7

12

Max

100

5000

18

7500

10000

270

16000

Mean

88

59

0.3

25

92

15

180

Median

89

11

0.1

17

15

14

40

Mean/Median

1.0

5.4

2.4

1.5

6.1

1.1

4.5



Benzene

Toluene

Ethylbenzene

o-Xylene

m+p-Xylene

Xylenes

BTEX

Results

1722

1722

1722

1722

1722

1719

1719

Not measured

70

70

70

70

70

73

73

Detected

15

65

101

93

141

153

165

% Detected

1

4

6

5

8

9

10

Min

0.1

0.1

0.1

0.1

0.1

0.1

0.1

Max

0.9

310

420

210

1300

1500

2200

Mean

0.4

6.1

8.1

5.7

22

24

29

Median

0.3

0.3

0.6

0.7

1.0

1.1

1.2

Mean/Median

1.4

20

13

8.8

22

22

24



C6–C10

C10–C15

C15–C20

C20–C35

C10–C20

C6–C35



Results

1792

1792

1792

1792

1792

1792



Not measured

0

0

0

0

0

0

Detected

200

258

458

638

488

718

% Detected

11

14

26

36

27

40

Min

2.0

5.0

5.1

20

5.1

2.0

Max

3700

6600

4400

9600

7000

12,000

Mean

130

220

110

270

220

420

Median

12

27

21

96

28

110

Mean/Median

11

8.4

5.0

2.8

7.7

3.9



Fl

BbjkFl

BaPyr

Ipyr

DBahAnt

PAH



Results

1786

1777

1777

1777

1777

1777



Not measured

6

15

15

15

15

15

Detected

1217

1321

1052

948

685

1328

% Detected

68

74

59

53

39

75

Min

0.01

0.01

0.01

0.01

0.01

0.01

Max

420

210

120

68

16

830

Mean

1.8

1.2

0.8

0.5

0.2

4.0

Median

0.16

0.09

0.14

0.13

0.06

0.28

Mean/Median

11

13

5.9

4.2

2.9

14

Fl: fluoranthene; BbjkFl: Benzo(b+j+k)fluoranthene; BaPyr: Benz(a)pyrene; Ipyr: Indeno(1,2,3-cd)pyrene; DBahAnt: Dibenzo(a,h)anthracene

Metals were detected in almost all samples, but with highly skewed distributions due to a few high concentrations. BTEXs were detected in only 10 % or less of the samples. Light hydrocarbons (C10–C20) were detected in 26 % of the samples and heavy hydrocarbons (C20–C35) in 36 % of the samples. The distributions are extremely skewed with only few very high concentrations. For PAHs, most samples have concentrations close to DL or < DL. The skewed distributions with many concentrations close to DL and few very high concentrations is typical of many contaminated sites with few contamination hotspots and low background levels for the remaining samples. Even after taking the logarithm of the concentrations, the distribution for most of the compounds were still highly positively skewed (data not shown). The statistics reported here were consequently calculated based on concentrations > DL only.

Figure 4 shows how the contaminants are distributed across the sampling site. The plots show the average concentration over all sampling depths. The lowest level of the contour plot (deep blue colour) is for an average concentration below the threshold for uncontaminated soil, corresponding to class 0.

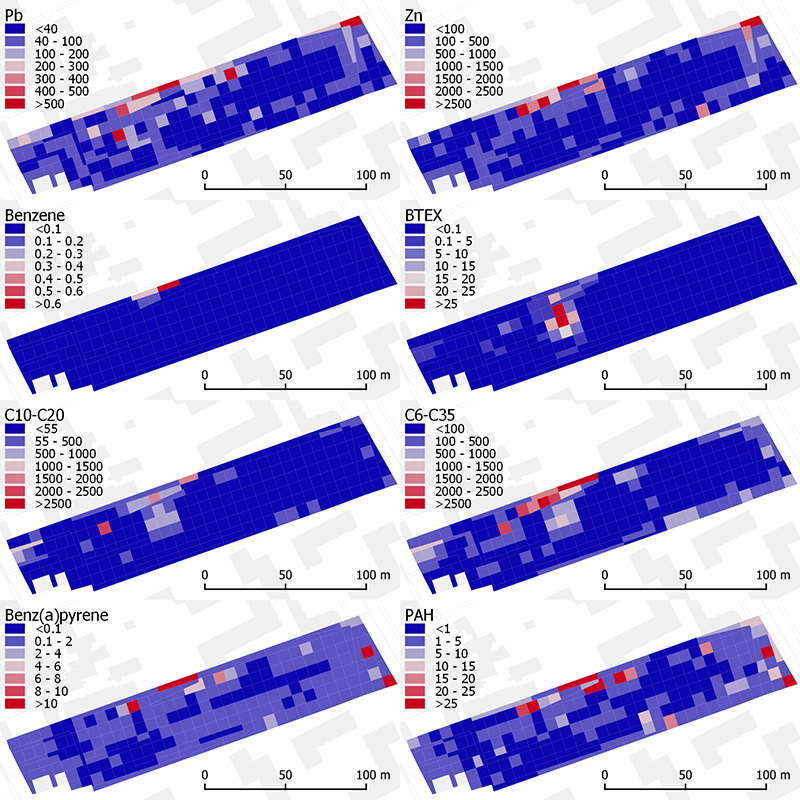

Figure 4. Distribution of contaminants across the industrial site. Average concentrations for all depths in mg kg–1  dw. The lowest level (dark blue) is for concentration that would be classified as soil class 0.

It is evident that the site contains several hotspots with high contaminations, mainly along the borders of the area, highest in the north-west centre, but also in the east corner for PAHs and the south border for BTEX. The irregular spread of contaminants at the site is typical of its complex historical industrial use (production of glue, paint and lacquer, warehousing, stock rental and container rental with several tanks for storage of chemicals and waste).

Figure 5 shows the distribution of contaminants as a function of depth. The depth profiles are quite different for the various types of contaminants: Metals and PAHs decrease with depth, BTEX peaks at 0.8 m, hydrocarbons decrease with depth, but have a double maximum at 0.5 m (for light hydrocarbon components) and 1.5 m for heavier components.

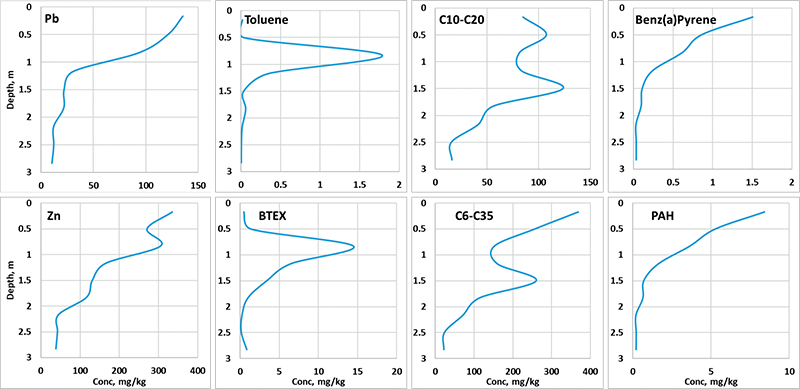

Figure 5. Average concentration in mg kg–1 dw as a function of depth (0.00–3.00 m).

The most probable processes of contamination spreading (see typical processes in Guidelines on remediation of contaminated sites by the Danish EPA2) are unplanned breaks in local groundwater abstraction and multiple contaminations either spread directly, e.g. as spills, or indirectly as deposition of soil and waste (the entire soil above groundwater table is deposited). The groundwater potential in low-lying urban areas close to the sea, such as this site, is approximately at ground level. Typically, the groundwater level in such areas is regulated by abstraction to approximately 1.5 m below ground level. Apart from the primary industrial contamination sources, occasional changes of groundwater level and later deposition are the main contributors to the contamination spreading patterns at the site.

Sampling uncertainty

The total uncertainty (sampling + analysis) of the primary and secondary sampling was estimated based on 28 duplicate primary samples: 18 were collected at 0.17 m and 10 at a depth of 0.83 m. The result given as the pooled relative standard deviation (RSD %) for the determinations is listed in Table 4.

Table 4. Total RSD % of sampling (sampling + analysis) determined from duplicate primary samples.a

ALL

Metals

BTEX

Hydrocarbon

PAH

All contamin.



RSD %

58

98

66

78

71



N

196

53

76

122

447

Metals

Pb

Cd

Cr

Cu

Ni

Zn



RSD %

74

74

40

68

48

64



N

28

28

28

28

28

28

BTEX

Benzene

Toluene

EthBz

o-Xylene

m+p-Xylene

Xylenes

BTEX

RSD %

96

81

97

97

107

102

95

N

4

6

8

8

9

9

9

Hydrocarbons

C6–C10

C10–C15

C15–C20

C20–C35

C10–C20

C6–C35



RSD %

87

66

65

63

66

58



N

13

15

22

26

22

26

PAH

Fl

BbjkFl

BaPyr

Ipyr

DBahAnt

PAH



RSD %

80

77

79

80

74

80



N

27

25

24

24

22

28

aThese numbers include the minor analysis uncertainty

Thus, the RSD % for a sample taken at the same position at the depths 0.17 m and 0.83 m was approximately 70 %. The influence of typical uncertainties for laboratory analysis is shown in Table 5.

Table 5. Uncertainty of sampling (RSD %) when analytical uncertainty is subtracted.a

Total RSD %

Analysis RSD %



5

10

20

30

30

28

22

40

40

39

35

50

50

49

46

60

60

59

57

70

70

69

67

80

80

79

77

$$\eqalign{ & Sampling\,RSD\,\% = \cr & \sqrt {{{\left( {Total\,RSD\,\% } \right)}^2} - {{\left( {Analysis\,RSD\,\% } \right)}^2}} \cr} $$

As can be seen, the influence of the analytical uncertainty is only of minor importance compared to an average total sampling uncertainty of approximately 60–70 %. For comparison, an alternative way of estimating this uncertainty is to plot the standard deviation as function of the concentration. The slope of this line is equal to the RSD. The average RSD for all analytes (excluding sums of xylenes etc.) was 61 % when all samples were included and 68 % when the highest concentrations were excluded.

In summary, the sampling uncertainty was at least 60–70 %. How much of this uncertainty was due to the primary sampling vs the secondary sampling could not be determined from the current experimental setup, as this would require duplicates for each step (primary and secondary sampling) separately.

Soil classification errors

How does this level of sampling uncertainty affect soil classification? This very important question can be illustrated in this study because all samples, both standard samples and Gandalf samples, are extracted by the same sampling procedure and with the same tools as are generally used in Denmark for soil classification—except that more increments (10) were used for the secondary sampling in the field.

The effect of sampling uncertainty on soil classification was investigated in three ways: 1) comparison of classification for the 28 duplicate primary samples, 2) comparison of classification according to standard samples and to Gandalf samples within the same grid (7 × 7 × 0.33 m) and 3) a detailed analysis of which compounds are the most influential regarding soil classification.

The results of comparison of the 28 duplicate primary samples and comparison of classification of standard samples with Gandalf samples are shown in Table 6.

Table 6. Soil classification errors for duplicates and Gandalf samples relative to standard samples. The column % abs is percent sample with an absolute difference of one to four classes. Bin is the distance from the original standard sample soil class (–4, –3, –2, –1 indicate classification 1–4 less), while positive values (1, 2, 3, 4) indicate classification above the original standard sample.

All samples, duplicates + Gandalf

Bin

Frequency

%

% abs

–4

0

0



–3

13

4



–2

19

6



–1

63

20



0

147

47



1

45

14

34

2

21

7

13

3

5

2

6

4

2

1

1

Sum

315

100

53

Table 6 shows that 53 % of the investigated sites were classified differently [standard sample vs the associated duplicate or w.r.t. Gandalf samples (Sum % abs for all samples)]. Soil classification errors increase as function of distance away from the standard sample location up to a distance of 2 m (32 %, 49 %, 58 % and 57 % for 0 m, 1 m, 2 m and 3 m, respectively).

The lesson learned from this survey is that two primary samples taken from the same DU, 30 ton soil, gave rise to different soil classifications in one-third of the cases if two samples were taken at the exact same position, but in half of the cases if the samples are extracted at various other distances from within the same DU. These levels of misclassification must be considered as minimum estimates as the sampling procedure in this study is improved over the standard approach by using 10 increments for the secondary sub-sampling in contrast to the normal procedure of only one increment. An overview with the average difference between classifications, i.e. the global classification error is given in Table 7.

Table 7. Soil classification error from two samples from the same 30 tons primary sample. N indicate the number of samples, N(error) how many samples have different classifications, % Error is the percentage of wrong classifications, while Mean error indicates the mean error in the classification.

Distance (m)

N

N(error)

% Error

Mean error, classes

0

28

9

32

0.7

1

81

40

49

1.0

2

96

56

58

1.2

3

110

63

57

1.1

All

315

168

53

1.1

Table 8 shows the classification of all 1792 soil samples according to individual contaminants.

Table 8. Soil classification according to individual contaminants.

Soil classification

Pb

Cd

Cr

Cu

Ni

Zn

Class

(%)

(%)

(%)

(%)

(%)

(%)

0

70

89

98

73

67

77

1

0

0

2

25

30

17

2

18

6

0

0

2

0

3

10

5

0

1

2

4

4

2

0

0

2

0

2

Class > 0

30

11

2

27

33

23

Soil classification

C6–C10

C10–C15

C15–C20

C20–C35

C10–C20

C6–C35

Class

(%)

(%)

(%)

(%)

(%)

(%)

0

96

94

94

83

91

79

1

0

0

0

0

0

0

2

1

1

1

6

2

7

3

0

1

1

4

1

3

4

3

5

4

7

6

10

Class > 0

4

6

6

17

9

21

Soil classification

Benzene

BTEX

BaPyr

DBahAnt

PAH



Class

(%)

(%)

(%)

(%)

(%)



0

99

94

67

87

72

1

0

0

9

9

16

2

1

4

15

2

10

3

0

0

7

1

2

4

0

2

2

1

1

Class > 0

1

6

33

13

28

The contaminants responsible for most of the classification as contaminated soil (class 1–4), were Pb, Ni, Zn, heavy hydrocarbons, Benz(a)pyrene and sum PAHs.

The results in Table 8 denote classification for one contaminant (or contaminant type) regardless of classification by other contaminants.

The difference in classification for the different types of contaminants was 53 % for metals, 6 % for BTEX, 33 % for hydrocarbons and 40 % for PAHs.

Metals showed the highest classification difference (in relative percentages), whereas the lower percentages for PAHs, hydrocarbons and especially BTEX reflect that very many were < DL resulting in a classification as class 0 according to these compounds.

Conclusions

Classification of excavated soil is crucial for correct handling and eventual reuse. Based on the official sampling strategies used in Denmark, the present large-scale investigation clearly identifies primary and secondary sampling as the main factors affecting classification of contaminated soils. At least 50 % of all samples were misclassified, 20 % were misclassified by two or more classes. This study demonstrates that the risk of misclassification is highest for less mobile parameters, metals and PAHs compared to the volatile organic solvents.

The risk of misclassification goes two ways, both leading to under- as well as overestimation of the environmental risk class for the physical soil DUs. Overestimation in the form of classification of excavated soil into higher contamination classes will result in inefficient use of the soil resource by restricting its possible reuse unnecessarily—or lead to unnecessary deposition at landfills, which typically also lead to elevated transportation and deposition costs. In contrast, soil class underestimation is a de facto underassessment of the environmental risk, which may result in unnecessary exposure to the environment and/or to the public causing unwanted and unknown health and other risks.

The present study demonstrates that for soil contamination, sampling uncertainty dominantly exceed the uncertainty from laboratory analysis. However, misclassification can be reduced significantly by implementation of appropriate strategies for representative sampling. Methods are readily at hand as described in the TOS framework.13–15

Regulatory implications

We recommend that the risks for misclassification demonstrated in this study should be addressed by the relevant environmental authorities through review and renewal of exploration plans for future entrepreneurial projects in former industrial areas, a.o. using DUs dependent on the contamination type.16 The estimated misclassification and contamination levels at former industrial sites should be assessed together w.r.t. the prevailing hydro–geochemical conditions at the relevant sites.

In Denmark the quality of laboratory analysis is controlled through national quality control schemes and accreditations as opposed to, e.g., establishment of TOS-compliant sampling strategies. This study demonstrates that improvements of the data quality and thus the quality of later conclusions and actions are most efficiently met by focusing on the processes before representative samples are analysed in laboratories.

References

  1. https://www2.mst.dk/Udgiv/Publications/2001/87-7944-519-5/Html/Kap06_eng.Htm#kap6.1.2, [accessed 9-7-2021].
  2. https://www2.mst.dk/udgiv/publications/2002/87-7972-280-6/pdf/87-7972-281-4.pdf
  3. Bekendtgørelse af lov om Forurenet Jord (Regulation of Contaminated Soil). LBK No. 282 (2007).
  4. Bekendtgørelse om Anmeldelse og Dokumenation I Forbindelse Med Flytning a Fjord (Regulation for transport of soil). BEK No. 1452 (2015).
  5. Bekendtgørelse om Anvendelse af Restprodukter, Jord og Sorteret Bygge- og Anlægsaffald (Reuse of Waste, Soil and Building Materials). BEK No. 1672 (2016).
  6. https://www.regionsjaelland.dk/Miljo/jordforurening/Publikationer/Documents/jordvejledning-sjaelland-juli-2001-med-rettelser.pdf [accessed 9-7-2021].
  7. Ansøgning i Henhold Til §8 i Lov Om Forurenet Jord Om Tilladelse Til Anlægs- Og Gravearbejde Samt Ændret Arealanvendelse i Forbindelse Med Opførelse Af Boligbyggeri (not publicly available).
  8. https://cdnmedia.eurofins.com/Microsites/media/1947/metode-1-olie-i-jord-2-udgave-2010.pdf
  9. https://cdnmedia.eurofins.com/Microsites/media/1148/metode_4_2008_2_udg.pdf
  10. https://webshop.ds.dk/en-gb/standard/ds-2592003?CurrencyCode=EUR&pagesize=100&print=true
  11. https://www.nemi.gov/methods/method_summary/4699/
  12. https://webshop.ds.dk/en-gb/standard/milj%C3%B8unders%C3%B8gelser/ds-2041980
  13. P.M. Gy, Sampling for Analytical Purposes. John Wiley (1999). ISBN 978-0-471-97956-2
  14. P. Minkkinen, “Practical applications of sampling theory”, Chemometr. Intell. Lab. Sys. 74(1), 85–94 (2004). https://doi.org/10.1016/j.chemolab.2004.03.013
  15. K.H. Esbensen, Introduction to the Theory and Practice of Sampling. IM Publications Open, Chichester (2020). https://doi.org/10.1255/978-1-906715-29-8
  16. C. Ramsey, “Considerations for inference to decision units”, J. AOAC Int. 98(2), 288–294 (2015). https://doi.org/10.5740/jaoacint.14-292

Bo Svensmark

Bo Svensmark

Dr Bo Svensmark is Associate Professor emeritus of Chemistry at University of Copenhagen and has been working with analytical and environmental chemistry for almost 40 years. He has a long record as teacher, supervisor and external examiner at all academic levels in analytical and environmental chemistry. His main interest is sampling theory, theories in chromatography and applied statistics. Mathematical modelling, mostly by digital simulation, has always been one of his preferred methods. He is chairman of The Danish Society of Analytical Chemistry. Currently he is working on extensions to the Theory of Sampling.
Orcid iD Symbol 0000-0003-0430-6181
[email protected]

Peter Mortensen

Peter Mortensen

Peter Mortensen holds degrees in Biology, Chemistry and Business Administration from the University of Aarhus. Peter is currently head of Innovation at Eurofins Environment Denmark with special emphasis on soil, water and air testing. Peter has more than 30 years of experience in all areas of environmental monitoring and laboratory analysis and has a long record of articles, presentations and reports on primarily chemical aspects of environmental exposure, risk evaluation and mitigation strategies.
Orcid iD Symbol 0000-0002-7290-8080
[email protected]

Nemanja Milosevic

Nemanja Milosevic

Nemanja Milosevic is a biologist with a PhD degree in hydro–geochemistry with experience in data engineering and environmental impact assessments. Nemanja is currently employed as chief specialist (environmental fate of pesticides) at DMR. He commands different domains: environmental chemistry, geostatistics, field investigations of ground water/surface water interaction and assessment of the impact of land use on ecosystems and the climate. He is passionate in developing risk assessment tools.
Orcid iD Symbol 0000-0001-7226-1910
[email protected]

Jan Christensen

Jan Christensen

Jan H. Christensen is professor in Environmental Analytical Chemistry from University of Copenhagen. Jan is currently Leader of the Analytical Chemistry group and the Research Center for Advanced Analytical Chemistry at the University of Copenhagen. He is internationally renowned for research in chemical fingerprinting with a large international academic and industrial network on non-target fingerprinting analysis and oil analysis. Experienced in project leadership with over 30 funded research projects in 10 years and 130+ research publications. Extensive experience with industry collaboration, IPR and patents.
Orcid iD Symbol 0000-0003-1414-1886
[email protected]

Rate this Article
No votes yet
